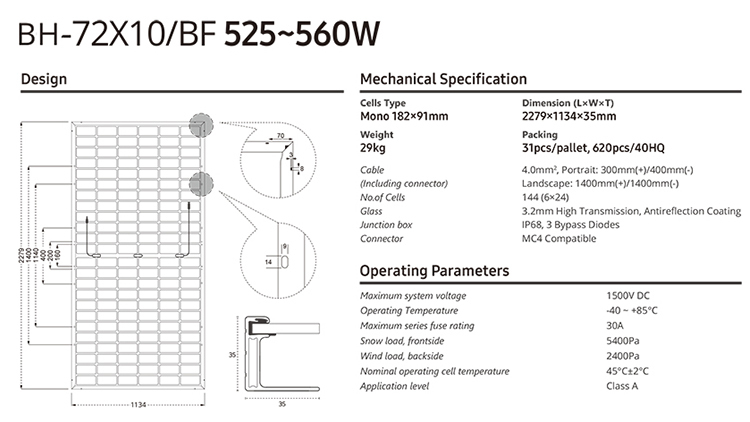

BH-72X10/BF-525~560W Bifacial Mono High Efficiency Solar Panels
|
Electrical Characteristics
|
||||||||
|
BH-72X10/BF
|
||||||||
|
Module Type
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
|
Maximum Power (Pmax)
|
525
|
391
|
530
|
394
|
535
|
398
|
540
|
402
|
|
Open-circuit Voltage (Voc)
|
49.2
|
46.15
|
49.4
|
46.34
|
49.6
|
46.52
|
49.8
|
46.71
|
|
Maximum Power Voltage (Vmp)
|
41.4
|
38.83
|
41.6
|
39.02
|
41.8
|
39.21
|
42.0
|
39.40
|
|
Short-circuit Current (Isc)
|
13.48
|
10.89
|
13.54
|
10.94
|
13.60
|
10.99
|
13.66
|
11.04
|
|
Maximum Power Current (Imp)
|
12.68
|
10.06
|
12.74
|
10.11
|
12.80
|
10.15
|
12.86
|
10.20
|
|
Module Efficiency (STC)
|
20.31%
|
20.51%
|
20.70%
|
20.89%
|
||||
|
STC: Standard Test Environment : Irradiance 1000W/m2, Cell temperature 25°C, Spectrum AM1.5
NOCT: Standard Test Environment : Irradiance 800W/m2, Ambient temperature 20°C, Spectrum AM1.5, Wind speed 1m/s |
||||||||
|
Refer Bifacial Factor: 70±5% Temperature Coefficient of Isc: 0.05%/°C
Temperature Coefficient of Voc: -0.31%/°C Temperature Coefficient of Pmax: -0.35%/°C |
||||||||
|
Electrical Characteristics
|
||||||||
|
BH-72X10/BF
|
||||||||
|
Module Type
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
|
Maximum Power (Pmax)
|
545
|
405
|
550
|
409
|
555
|
413
|
560
|
417
|
|
Open-circuit Voltage (Voc)
|
50.0
|
46.90
|
50.2
|
47.09
|
50.4
|
47.28
|
50.6
|
47.46
|
|
Maximum Power Voltage (Vmp)
|
42.2
|
39.58
|
42.4
|
39.77
|
42.6
|
39.96
|
42.8
|
40.15
|
|
Short-circuit Current (Isc)
|
13.72
|
11.09
|
13.78
|
11.13
|
13.84
|
11.18
|
13.90
|
11.23
|
|
Maximum Power Current (Imp)
|
12.91
|
10.24
|
12.97
|
10.29
|
13.03
|
10.33
|
13.08
|
10.38
|
|
Module Efficiency (STC)
|
21.09%
|
21.28%
|
21.48%
|
21.67%
|
||||
|
STC: Standard Test Environment : Irradiance 1000W/m2, Cell temperature 25°C, Spectrum AM1.5
NOCT: Standard Test Environment : Irradiance 800W/m2, Ambient temperature 20°C, Spectrum AM1.5, Wind speed 1m/s |
||||||||
|
Refer Bifacial Factor: 70±5% Temperature Coefficient of Isc: 0.05%/°C
Temperature Coefficient of Voc: -0.31%/°C Temperature Coefficient of Pmax: -0.35%/°C |
||||||||
|
Double-sided power generation parameters (Rear gain)
|
|||||||||
|
5%
|
Maximum Power (Pmax)
|
551
|
557
|
562
|
567
|
572
|
578
|
583
|
587.5
|
|
Module Efficiency (%)
|
21.33%
|
21.53%
|
21.74%
|
21.94%
|
22.14%
|
22.35%
|
22.54%
|
22.73%
|
|
|
15%
|
Maximum Power (Pmax)
|
604
|
610
|
615
|
621
|
627
|
633
|
633
|
632.9
|
|
Module Efficiency (%)
|
23.36%
|
23.58%
|
23.81%
|
24.03%
|
24.25%
|
24.47%
|
24.48%
|
24.49%
|
|
|
25%
|
Maximum Power (Pmax)
|
656
|
663
|
669
|
675
|
681
|
688
|
694
|
700
|
|
Module Efficiency (%)
|
25.39%
|
25.63%
|
25.88%
|
26.12%
|
26.36%
|
26.60%
|
26.84%
|
27.09%
|
|
* 12-Year material & technology warranty
* 30-Year linear power output warranty
* DAH solar linear power output guarantee
* Standard linear power output guarantee
* Max Module Efficiency21.52%.
Product Characteristics
* Up to 20% generation gain from the rear-side
The grid line transparent back sheet increases the back reflection,and the power generation gain increases with the back light
* More than 25% module weight lighter
* Compared with the dual glass module, the weight is reduced by 25%,which is easy to install and save the cost of BOS
* Higher generation effificiency and stability
* Low current, low hotspot and better low-irradiance performance,more stable power generation
* Longer power output life span
* Anti PID, low acetic acid concentration,ensure the module linear power output for 30 years
* Strong environmental adaptability
Certified by Dust-Sand, Salt-Mist, Ammonia etc. weather resistance tests
* Select Grade A crystalline silicon solar cells
Grade A crystalline silicon solar cells make high-power output with cost-effective
