Half Cell 9BB Mono Solar Panel 330W Full Black

Short Description:

120 cells 9BB half cell mono solar panel 330w all with A Grade for on-grid &  off-grid use for residential and public rooftop & ground mounting PV Power System.


Product Detail

Product Tags

120 cells 9BB half cell mono solar panel 330w all with A Grade for on-grid &  off-grid use for residential and public rooftop & ground mounting PV Power System.

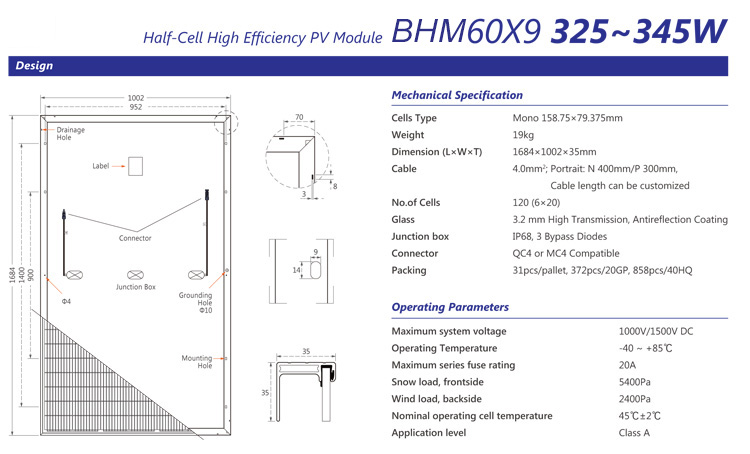

英语-HCM60X9-325-345W(35mm)-2020.3.7

Electrical Charateristics(STC)

Module Type

HCM60X9-325w

HCM60X9-330w

HCM60X9-335w

HCM60X9-340w

HCM60X9-345w

Maximum Power (Pmax)

325W

330W

335W

340W

345W

Open-circuit Voltage (Voc)

40.4V

40.6V

40.8V

41.0V

41.2V

Maximum Power Voltage (Vmp)

33.5V

33.7V

33.9V

34.1V

34.3V

Short-circuit Current (Isc)

10.27A

10.33A

10.39A

10.46A

10.53A

Maximum Power Current (Imp)

9.71A

9.80A

9.89A

9.98A

10.06A

Module Efficiency(%)

19.26%

19.56%

19.85%

20.15%

20.45%

Power Tolerance

0~+5W

Standard Test Environment

Irradiance 1000W/m2, Cell Temperature 25℃,Spectrum AM 1.5

Workshop-3

First-class solar panel warranty Reliable quality

1.12 years material & technology guarantee
2. 25 years linear power output guarantee
3. 100% Double full EL inspection
4. 0-+5W  Positive power output guarantee

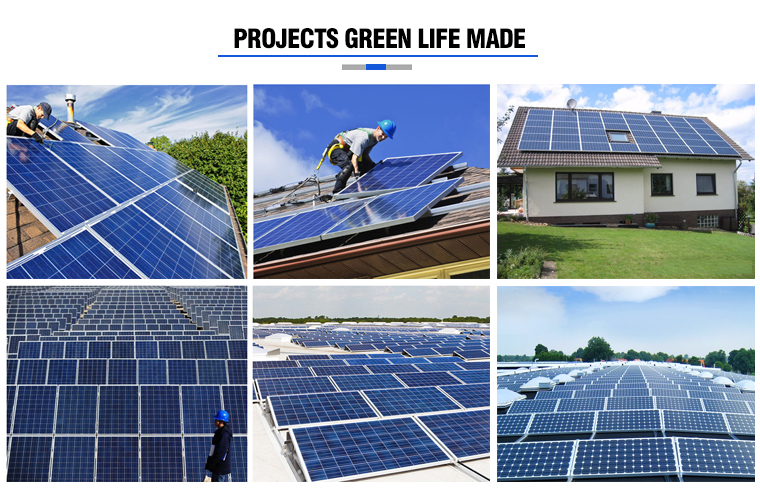

PROJECTS-2

Product Characteristics

1. Excellent space utilization performance, increasing power density effectively and reducing costs of solar panel.

2. Reducing the temperature of the solar module hot spot above 20℃ , to ensure soalr power system stability and reliability.

3. Larger size of light receiving area, higher solar panel power, lower system cost.

4. Lower temperature coefficient, zero depth reflection increasing.

5. More busbars, the less of broken and cracking , as the narrowed cell busbar width,the light receiving area and power are increased too.

6. Reducing the loss of current mismatch and resistance of solar panel.

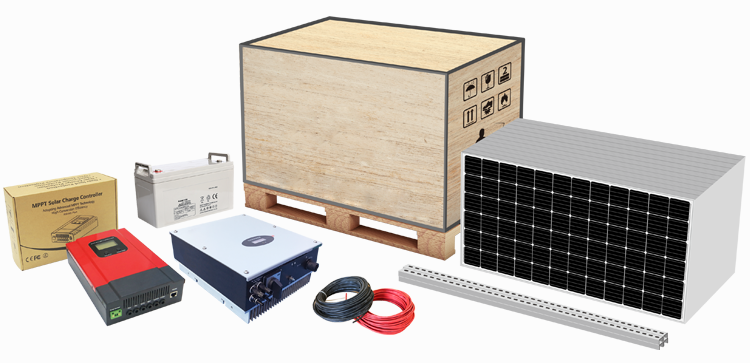

Packing-4
