1KW Off Grid Solar Home System
Product Introduction
1KW off grid solar power system for home use with battery
Product Paramenters
|

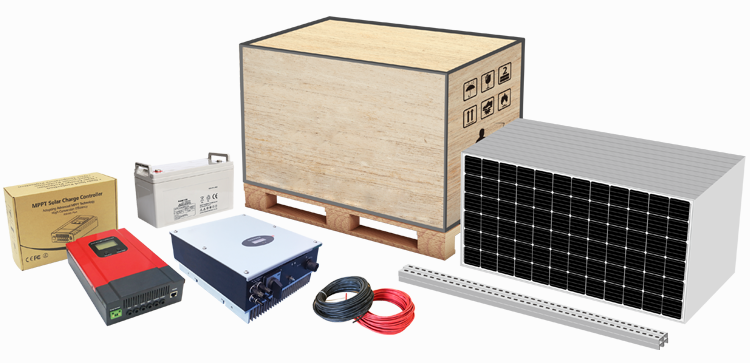

1Kw Off Grid Solar Power System Components
|
|||
|
Item
|
Name
|
Description
|
Quantity
|
|
1
|
Solar Panel
|
Poly 320w Solar Panel
|
4 pcs
|
|
2
|
Inverter
|
1kw Off grid Solar Inverter
|
1 set
|
|
3
|
PV Combiner Box
|
2 Inputs 1 output
|
1 pc
|
|
4
|
Charger Controller
|
24V 60A (MPPT/PWM)
|
1 pc
|
|
5
|
Battery
|
12V 250AH (Lead Acid/Gel)
|
2 unit
|
|
6
|
Solar Mounting Structure
|
Roof/Ground Install (Customized)
|
1 set
|
|
7
|
PV Cable
|
4 mm2 DC PV Cable
|
100m
|
|
8
|
MC4
|
MC4 Connector
|
4 prs
|
|
9
|
Standard Wooded Package + System Connecting Drawings (Easy Installing)
|
||
|
10
|
System Capacity could be adjustable according customer’s situation
|
||

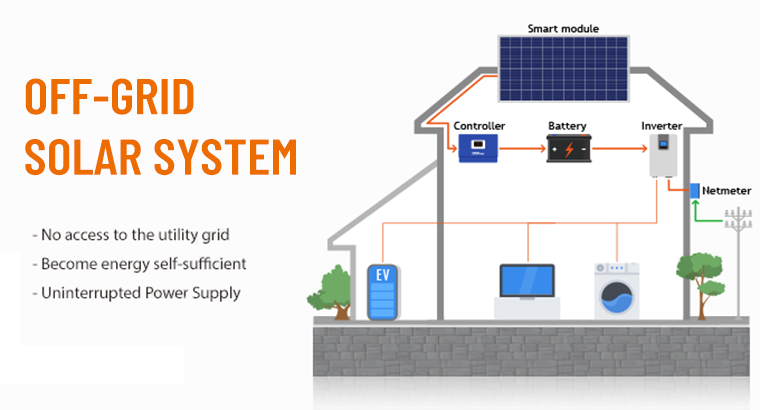

Advantages of Off-Grid Solar Systems
The utility grid is a virtual battery，off grid solar system is a good choice
“The electric power grid is in many ways also a battery, without the need for maintenance or replacements, and with much better efficiency rates. In other words, more electricity goes to waste with conventional battery systems.”
The utility grid is a virtual battery，off grid solar system is a good choice
“The electric power grid is in many ways also a battery, without the need for maintenance or replacements, and with much better efficiency rates. In other words, more electricity goes to waste with conventional battery systems.”
Packing details:
Internetional Standard Packaging;
