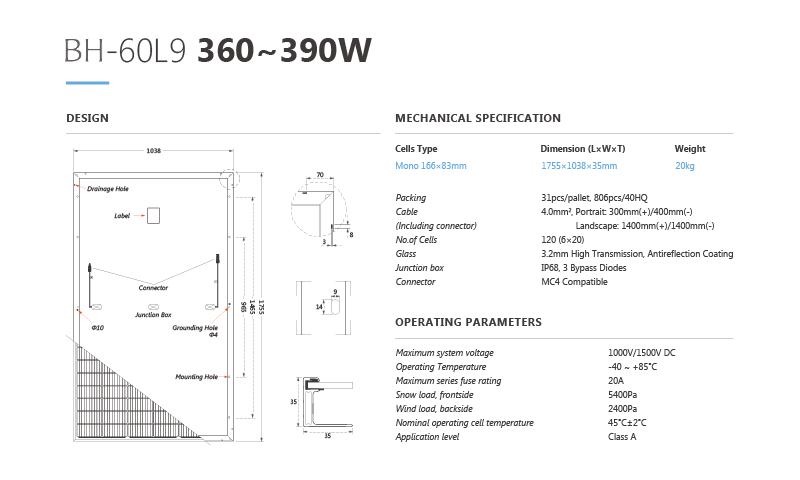

BH Mono Half-Cell/BH-60L9-360-390W Solar Panels
120 cells BH-60L9 half cell mono solar panel 360~390W all with A Grade for on-grid & off-grid use for residential and public rooftop & ground mounting PV Power System.
Electrical Charateristics(STC)
|
Module Type |
BH-60L9 |
BH-60L9 |
BH-60L9 |
BH-60L9 |
BH-60L9 |
BH-60L9 |
BH-60L9 |
|
Maximum Power (Pmax) |
360W |
365W |
370W |
375W |
380W |
385W |
390W |
|
Open-circuit Voltage (Voc) |
40.6V |
40.8V |
41.0V |
41.2V |
41.4V |
41.6V |
41.8V |
|
Maximum Power Voltage (Vmp) |
33.8V |
34.0V |
34.2V |
34.4V |
34.6V |
34.8V |
35.0V |
|
Short-circuit Current (Isc) |
11.24A |
11.30A |
11.36A |
11.42A |
11.48A |
11.54A |
11.60A |
|
Maximum Power Current (Imp) |
10.65A |
10.74A |
10.82A |
10.90A |
10.98A |
11.06A |
11.14A |
|
Module Efficiency(%) |
19.76% |
20.04% |
20.31% |
20.59% |
20.86% |
21.13% |
21.41% |
|
Power Tolerance |
0~+5W |
||||||
|
Temperature Coefficient of Isc |
0.05%/℃ |
||||||
|
Temperature Coefficient of Voc |
﹣0.31%/℃ |
||||||
|
Temperature Coefficient of Pmax |
﹣0.35%/℃ |
||||||
|
Standard Test Environment |
Irradiance 1000W/m², Cell Temperature 25℃，Spectrum AM 1.5 |
||||||
Product Characteristics
- Optimal Design Combination
- 166mm+9BB+Half-cut, higher power output.
- Super Performance & Stable Returns
- Low current & low hot spot, to ensure module operation optimally.
- Diversified Application Scenarios
- Strong weather-resistance, suitable for various roof installation.
- Lower LCOE
- Lower BOS, less installation area.
