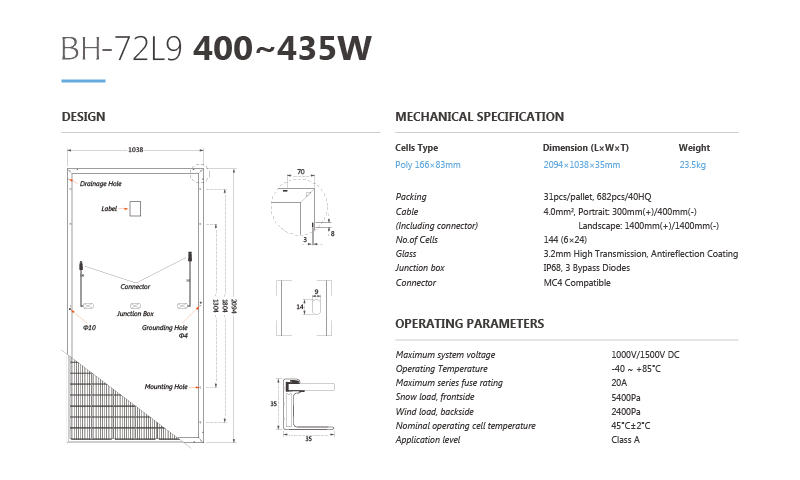

BH Poly Half-Cell/BH-72L9-400-435W Solar Panel
144 cells BH-72L9 half cell poly solar panel400~435W all with A Grade for on-grid & off-grid use for residential and public rooftop & ground mounting PV Power System.
Electrical Charateristics(STC)
|
Module Type |
BH-72L9 |
BH-72L9 |
BH-72L9 |
BH-72L9 |
BH-72L9 |
BH-72L9 |
BH-72L9 |
BH-72L9 |
|
Maximum Power (Pmax) |
400W |
405W |
410W |
415W |
420W |
425W |
430W |
435W |
|
Open-circuit Voltage (Voc) |
47.40V |
47.6W |
47.8V |
48.0V |
48.2V |
48.4V |
48.6V |
48.8V |
|
Maximum Power Voltage (Vmp) |
38.7V |
38.9V |
39.1V |
39.3V |
39.5V |
39.7V |
39.9V |
40.1V |
|
Short-circuit Current (Isc) |
10.84A |
10.92V |
11.00A |
11.08A |
11.16A |
11.24A |
11.32A |
11.40A |
|
Maximum Power Current (Imp) |
10.34A |
10.41A |
10.49A |
10.56A |
10.63A |
10.71A |
10.78A |
10.85A |
|
Module Efficiency(%) |
18.40% |
18.63% |
18.86% |
19.09% |
19.32% |
19.55% |
19.78% |
20.01% |
|
Power Tolerance |
0~+5W |
|||||||
|
Temperature Coefficient of Isc |
0.05%/℃ |
|||||||
|
Temperature Coefficient of Voc |
﹣0.31%/℃ |
|||||||
|
Temperature Coefficient of Pmax |
﹣0.37%/℃ |
|||||||
|
Standard Test Environment |
Irradiance 1000W/m², Cell Temperature 25℃，Spectrum AM 1.5 |
|||||||
Product Characteristics
- Optimal Design Combination 166mm+9BB+Half-cut, higher power output.
- Super Performance & Stable Returns Low current & low hot spot, to ensure module operation optimally.
- Diversified Application Scenarios Strong weather-resistance, suitable for various roof installation.
- Lower LCOE Lower BOS, less installation area.
