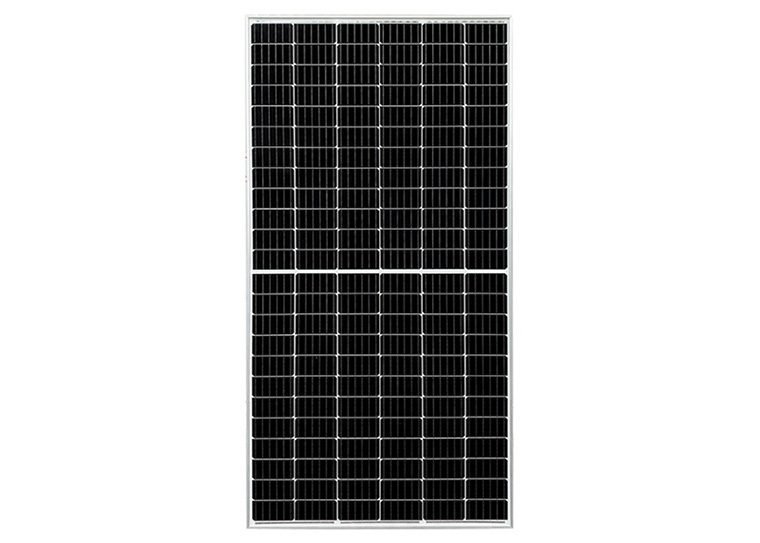

12BB Half Cut Cells Mono crystalline Solar Panels 680W 690W 695W 700W Solar Module
12BB Half Cut Cells Mono crystalline Solar Panels 680W 690W 695W 700W Solar Module
Specification of 210*210mm Half Cut Solar Panel Mono crystalline
| PV Module | BH685W | BH690W | BH695W | BH700W |
| Rated Maximum Power(Pmax) [W] | 685 | 690 | 695 | 700 |
| Open Circuit Voltage(Voc) [V] | 46.35 | 46.51 | 46.66 | 46.81 |
| Maximum Power Voltage(Vmp) [V] | 39.13 | 39.28 | 38.43 | 39.58 |
| Short Circuit Current(Isc) [A] | 19.01 | 19.12 | 19.23 | 19.34 |
| Maximum Power Current(Imp) [A] | 17.5 | 17.56 | 17.62 | 17.68 |
| Module Efficiency [%] | 22.1 | 22.3 | 22.5 | 22.7 |
| Power Tolerance | 0~+5W | |||
| Temperature Coefficient of Isc(α_Isc) | +0.048%/℃ | |||
| Temperature Coefficient of Voc(β_Voc) | -0.270%/℃ | |||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.350%/℃ | |||
| STC | Irradiance 800W/m²,Ambient Temperatire 20℃ | |||
| Size | 2400*1303*35mm | |||
| Weight | 36kg | |||

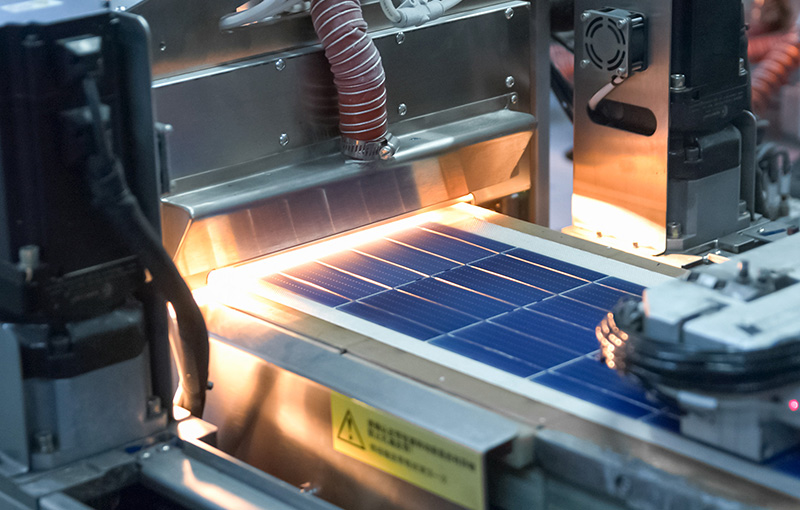

Production of 700W Half Cut Half Cells Solar Panel (210*210mm)

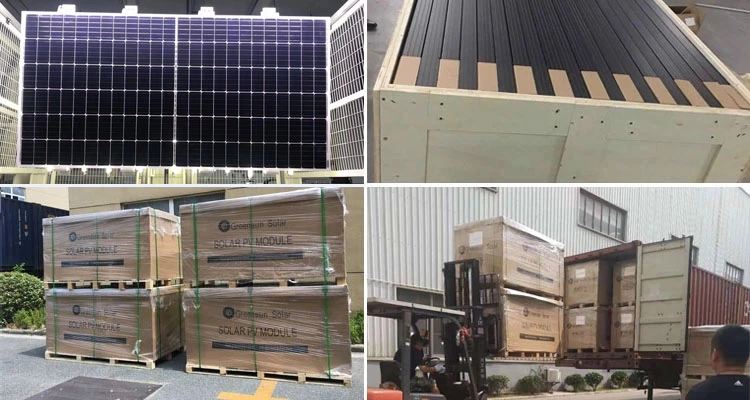

31 units half-cut cells solar panel in one wood pallet
588 Units per 40`ft container
Customization Package is Feasibility

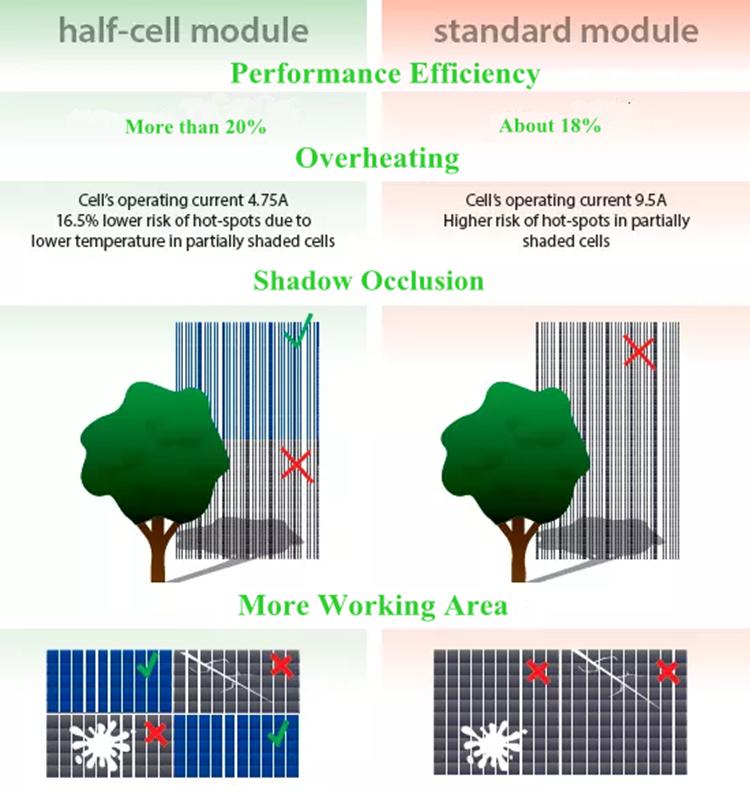

- (1) The solar cell is divided into two, the main gate current is halved, the current loss of the whole component is reduced to 1/4 of the original, and the output power is about 5-10W higher than that of the same type of whole battery assembly.
- (2) The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module
- assembly by about 25 ° C, which can effectively reduce the hot spot effect of the component.
- (3) Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%;
- (4) Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.
- (5) Reduce the first year and the average photoinduced attenuation;
- (6) 100% PID Free.
First-class solar panel warranty Reliable quality
1.12 years material & technology guarantee
2. 25 years linear power output guarantee
3. 100% Double full EL inspection
4. 0-+5W Positive power output guarantee
Product Characteristics
1. Excellent space utilization performance, increasing power density effectively and reducing costs of solar panel.
2. Reducing the temperature of the solar module hot spot above 20℃ , to ensure soalr power system stability and reliability.
3. Larger size of light receiving area, higher solar panel power, lower system cost.
4. Lower temperature coefficient, zero depth reflection increasing.
5. More busbars, the less of broken and cracking , as the narrowed cell busbar width,the light receiving area and power are increased too.
6. Reducing the loss of current mismatch and resistance of solar panel.
