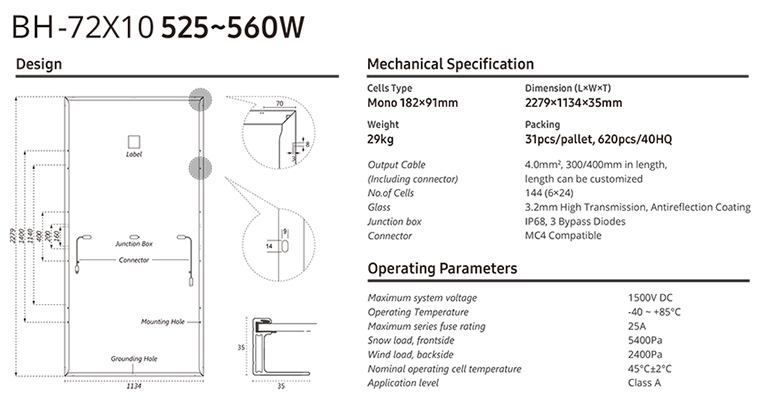

BH-72X10 525~560W Mono Solar Panels

Short Description:


Product Detail

Product Tags

Product Details
STC-Electrical Characteristics
Module Type
DHM-72X10
Maximum Power (Pmax/W)
525
530
535
540
545
550
555
560
Open-circuit Voltage (Voc/V)
49.2
49.4
49.6
49.8
50.0
50.2
50.4
50.6
Maximum Power Voltage (Vmp/V)
41.4
41.6
41.8
42.0
42.2
42.4
42.6
42.8
Short-circuit Current (Isc/A)
13.48
13.54
13.60
13.66
13.72
13.78
13.84
13.90
Maximum Power Current (Imp/A)
12.68
12.74
12.80
12.86
12.91
12.97
13.03
13.08
Module Efficiency (%)
20.31%
20.51%
20.70%
20.89%
21.09%
21.30%
21.48%
21.67%
Temperature Coefficient of Isc
0.05%/℃
Temperature Coefficient of Voc
—0.31%/℃
Temperature Coefficient of Pmax
—0.35%/℃
Standard Test Environment : Irradiance 1000W/m2, Cell temperature 25°C, Spectrum AM1.5



NOCT-Electrical Characteristics
Maximum Power (Pmax/W)
391
394
398
402
405
409
413
417
Open-circuit Voltage (Voc/V)
46.1
46.3
46.5
46.7
46.9
47.1
47.9
47.5
Maximum Power Voltage (Vmp/V)
38.8
39.0
39.2
39.4
39.6
39.8
40.0
40.1
Short-circuit Current (Isc/A)
10.89
10.94
10.99
11.04
11.09
11.13
11.18
11.23
Maximum Power Current (Imp/A)
10.06
10.11
10.15
10.20
10.24
10.29
10.33
10.38
Standard Test Environment : Irradiance 800W/m2, Ambient temperature 20°C, Spectrum AM1.5, Wind speed 1m/s
Advantages
* More Power Generation & Stable Generation Performance
* 10 Busbar Technology
* Stable Generation Performance
* Process Optimized and Upgraded
* Excellent mechanical load capacity: Wind Load (2400 Pascal) and Snow Load (5400 Pascal)
Product packaging
